Part Number: 40JK5T9
/
Vendor ID Number: 4799
/
Custom:

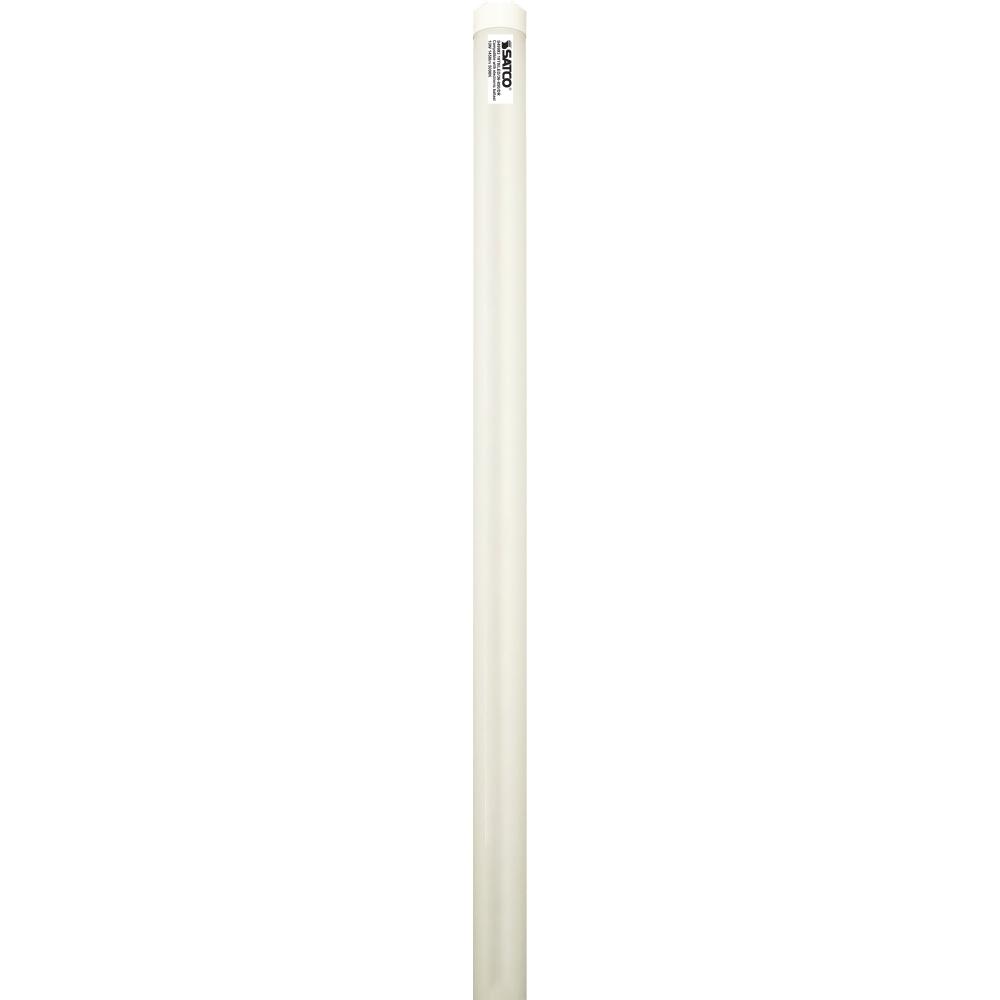

10 Watt; 3 Foot LED T8; Medium Bi Pin base; 5000K; 50000 Average rated hours; 1450 Lumens; Type A;
Call For Price
1487 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.10"
Product Overview
10 Watt; 3 Foot LED T8; Medium Bi Pin base; 5000K; 50000 Average rated hours; 1450 Lumens; Type A; Ballast dependent
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
Country of Origin- China
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1.1
EA Length:
36
Harmonized Codes:
8539.52.0051
Length:
35.78
Lumens:
1450L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.33
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.33
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Gloss White
Burning Position:
Universal
Carton Cubic Feet:
0.0252
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
82
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PL5YS2HL705U
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
145.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
No rewiring required
Feature 2:
All glass tubes - no aging, yellowing, or bending
Feature 3:
Integrated thermal fuse pins
Feature 4:
Damp location rated
Feature 5:
DLC 5.1 certified
Feature 6:
Operating temperature: -20C (-4F) to a maximum of 45C (113F)
Flourescent Equivalent:
25W/21W
Housing Color:
White
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Lens Finish:
Gloss White
Lens Material:
Glass
Location Rating:
Damp
Long Description:
SATCO|NUVO's S49993 10-watt, 36 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable
Material:
Glass
Nominal Length:
36
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
6
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 10-watt, 36 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable and ver
SDS class:
LED_Lamp
Short Description:
10T8/LED/36-850/DR
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Tube Guard Use:
Approved for use with tube guards when operated on Low or Normal ballast factor systems
Wattage Selectable:
No
Watts:
10W
