Part Number: 40UU6E1
/
Vendor ID Number: 4799
/
Custom:

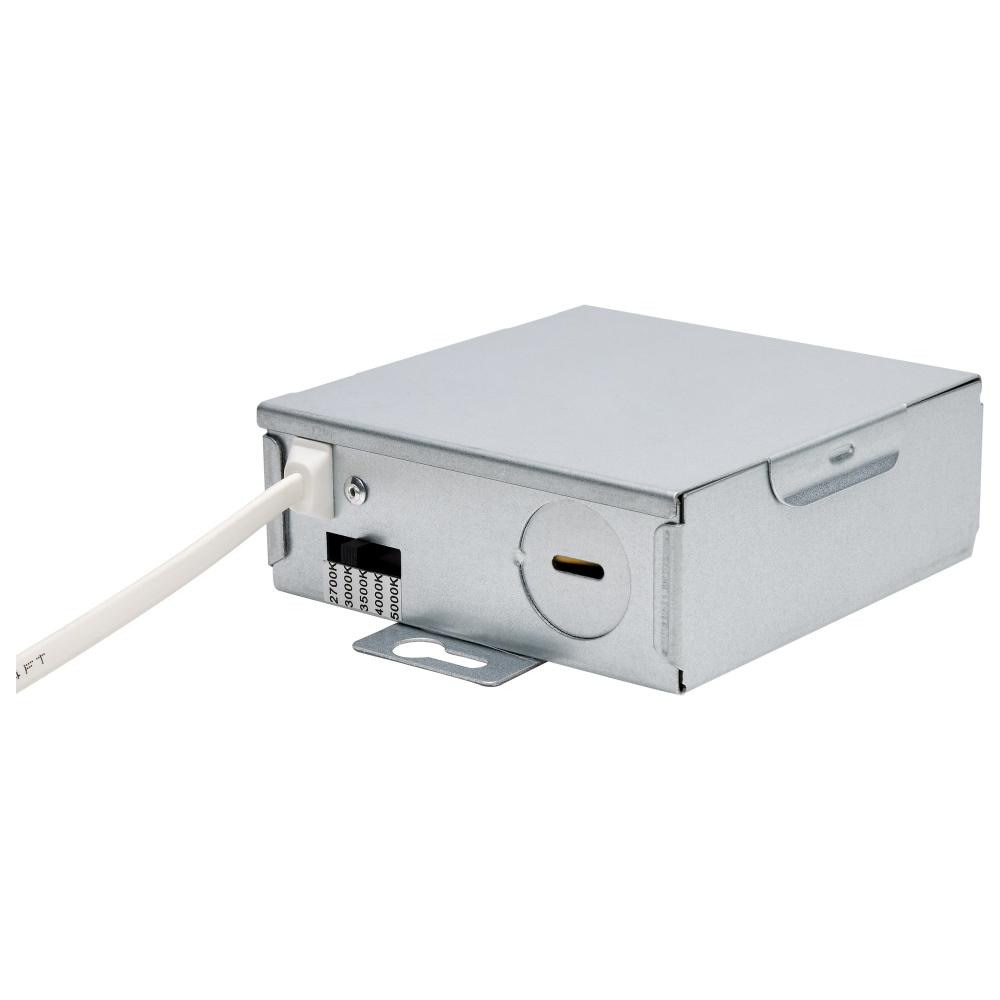

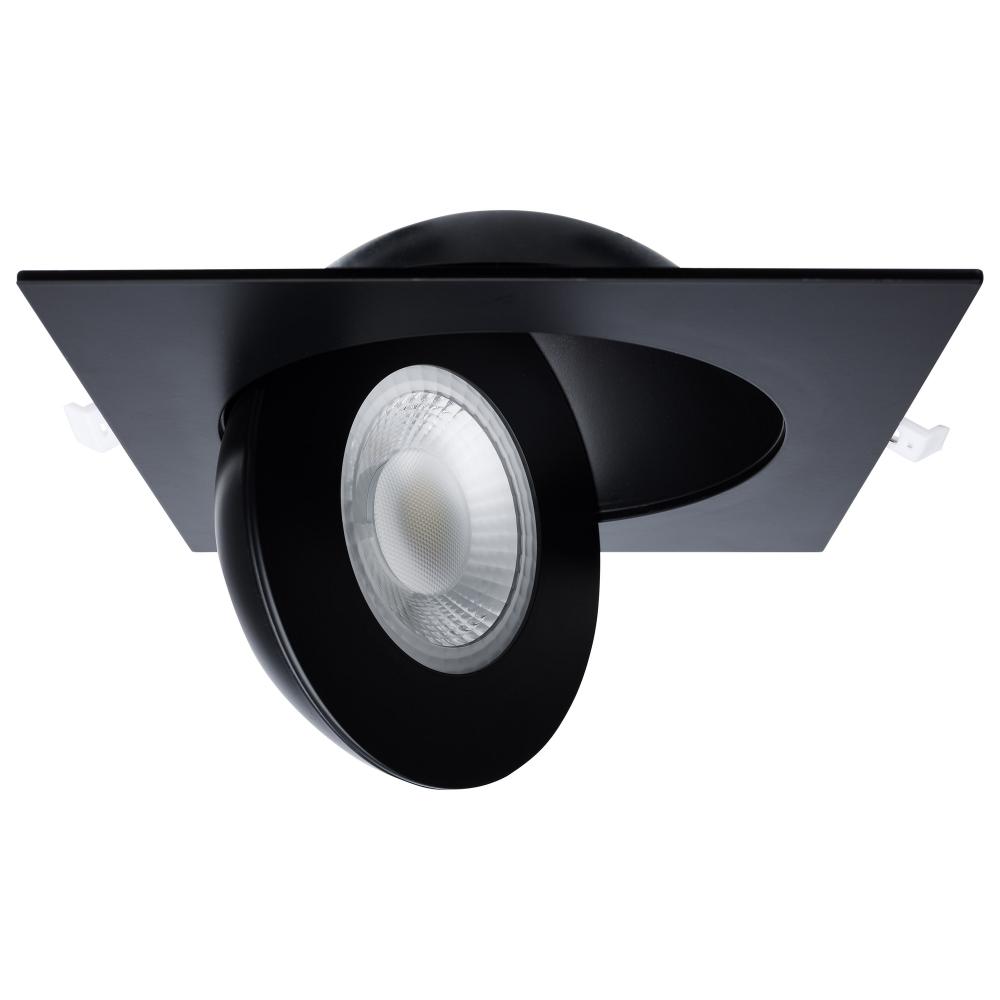

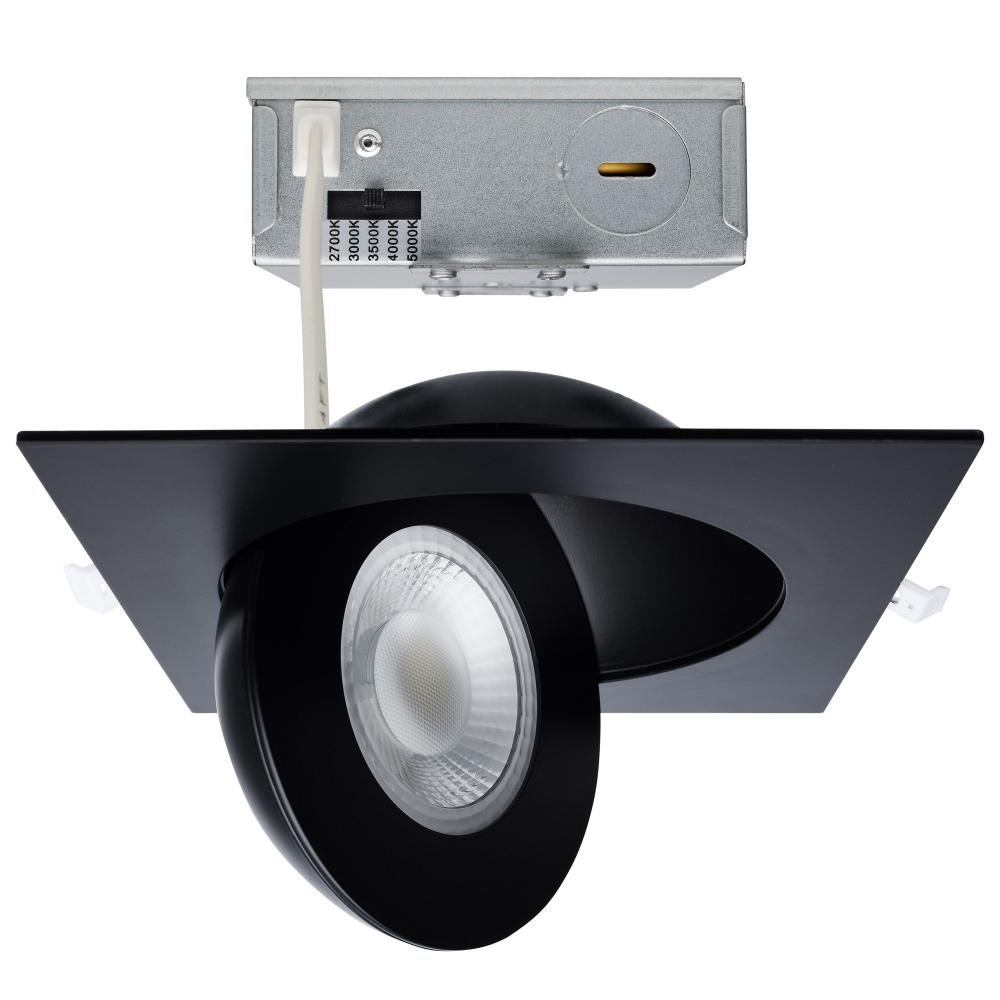

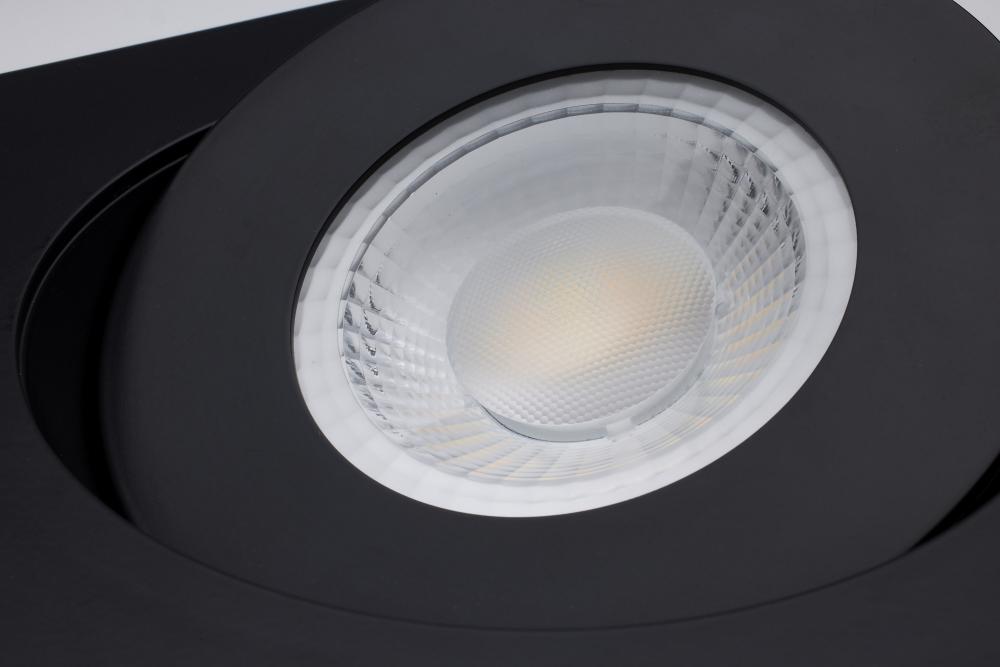

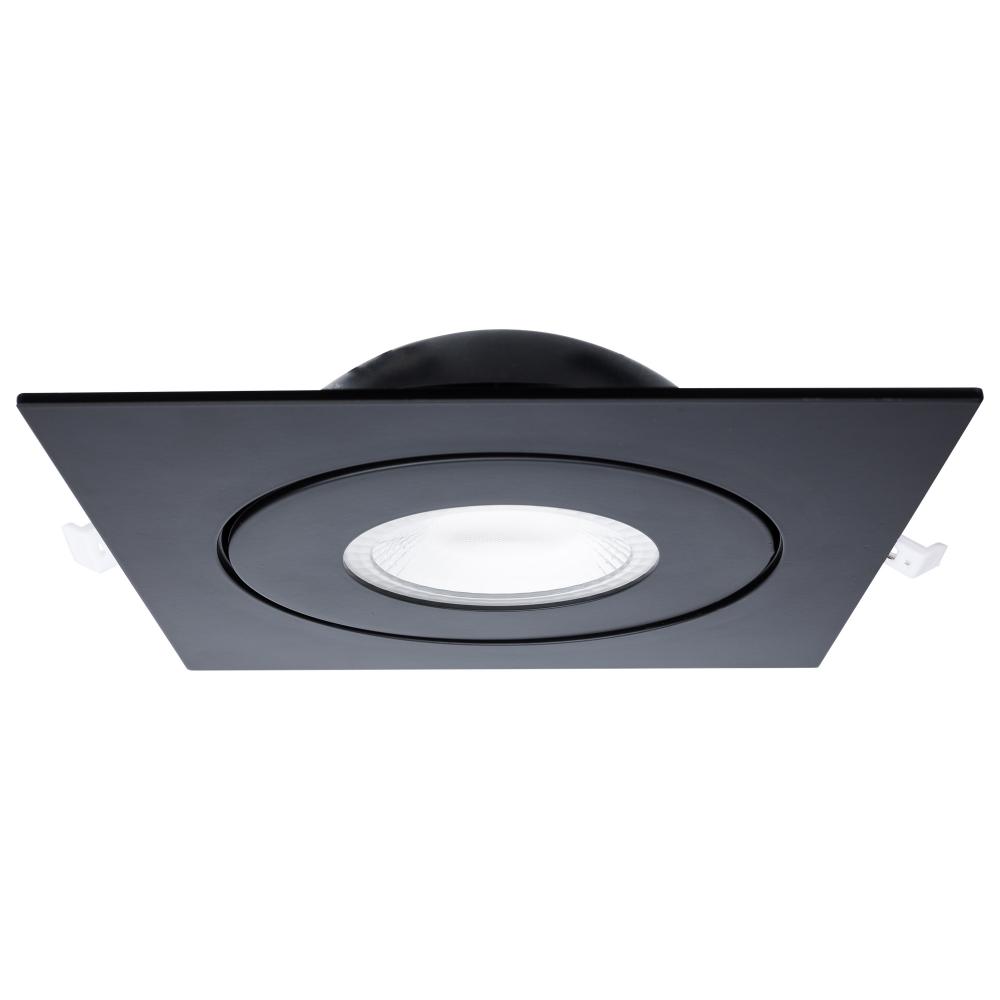

15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Square; Remote Driver; Black
Call For Price
1442 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.17"
Width: 7.48"
Finish
Black
Product Overview
15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Square; Remote Driver; Black
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Wattage:
15w
Finish:
Black /vendors/vendorImages black.jpg
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
8.19
Each Length:
8.699999999999999
Each Width:
3.94
Length:
7.48
Lumens:
1280L-1400L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - LED Commercial Downlights
Air Tight:
Yes
Amps:
0.125A
ANSI Base:
Integrated

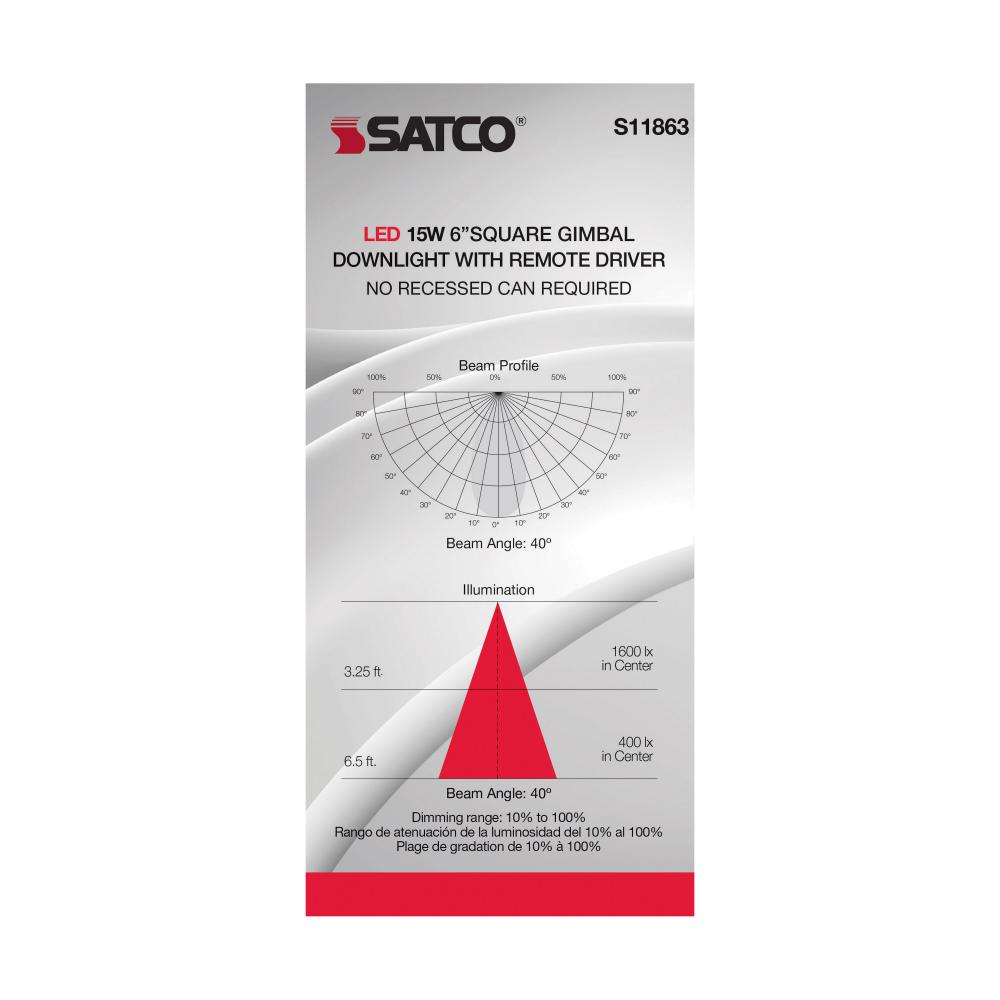

Beam Angle:
40
CA Prop-65:
Lead
Can Size:
6 in.
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
6.313 in. Cutout
Clearance Height:
3
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase
Each Cube:
0.1625
Each Quantity:
1
Efficacy:
85.33/89.33/93.33 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2470768
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:

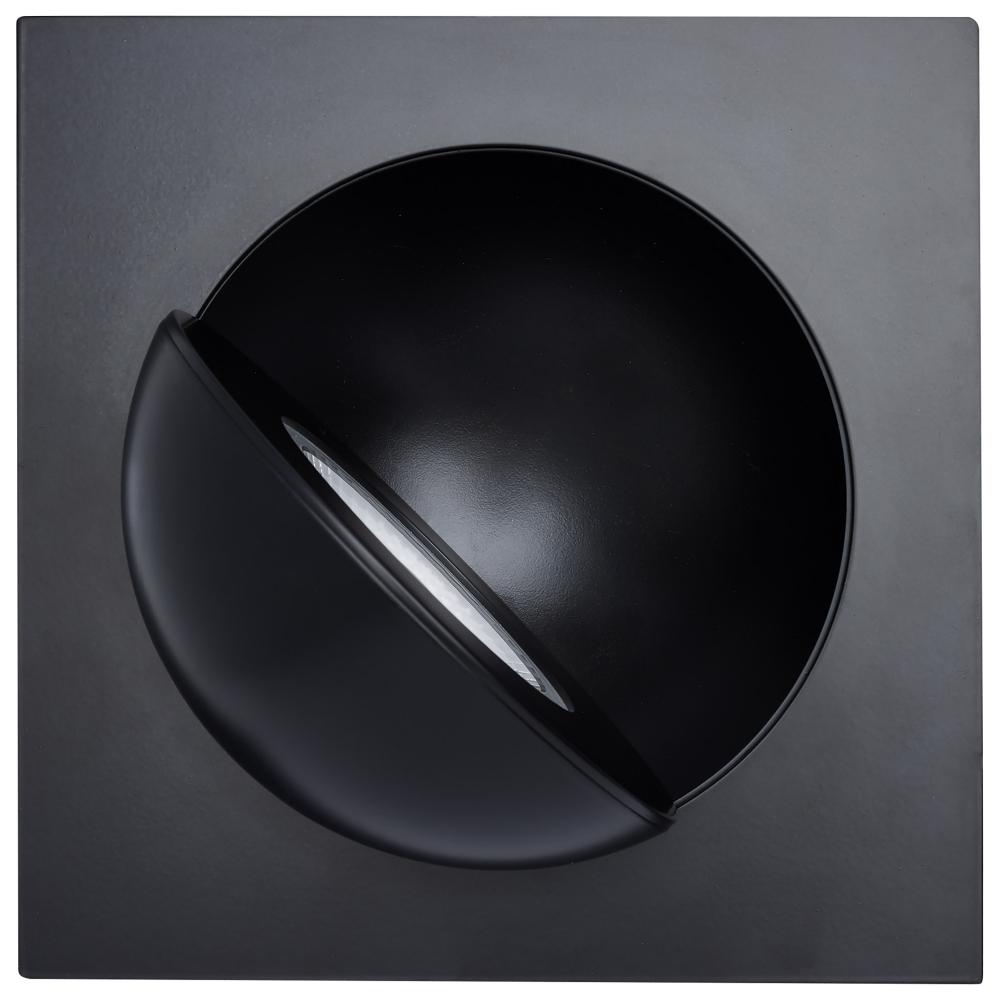

360 Degree Rotation
Feature 3:
0 to 80 Degree aiming angle
Feature 4:
Damp location rated
Feature 5:
Long life, 50,000 hours
Feature 6:
Energy Star certified
Finish Family:
Black
Fixture shape:
Square
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor

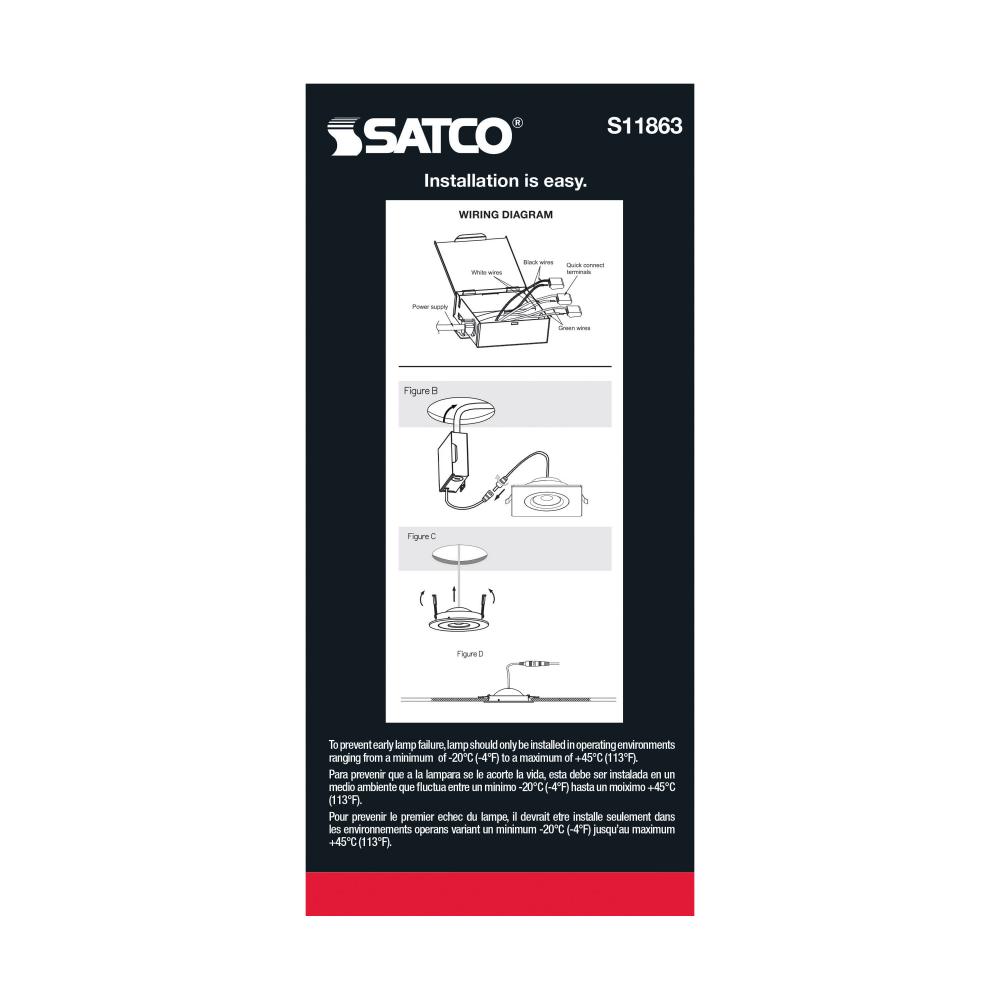

Installation Notes:
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IOT Enabled:
No
IP Rating:
IP42
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Plastic
Long Description:
The black, six inch square, Satco S11863 gimbaled downlight delivers multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect
Material:
Aluminum
Max Drywall Thickness:
1 in.
Mounting Procedure:
Recessed Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
59
Rec Spacing Between Fixtures:
3 ft. to 4 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
These low profile, CCT selectable remote driver downlights deliver multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect l
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
15WLED/GBL/6/CCT/SQ/BLK
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Trim Color:
Black
Wattage Selectable:
No
Weight Lb.:
1.06
