Part Number: 40UU6D6
/
Vendor ID Number: 4799
/
Custom:

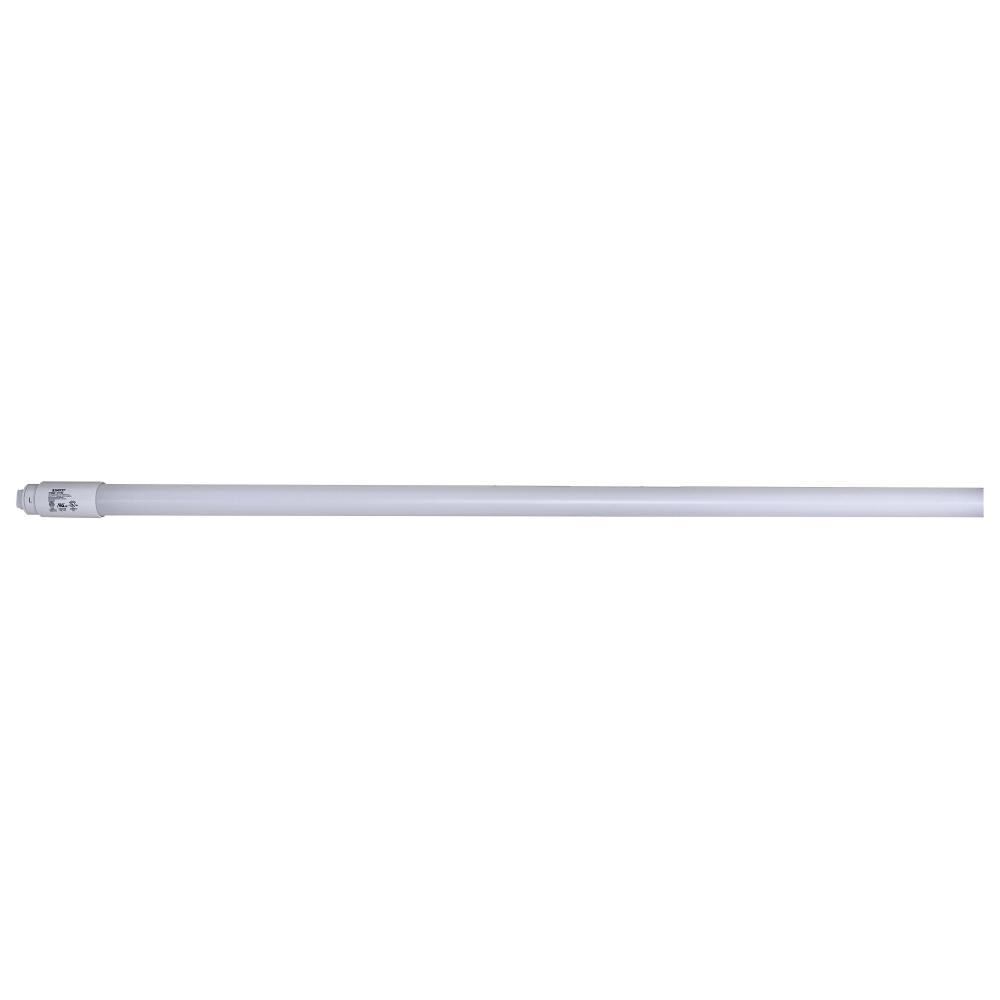

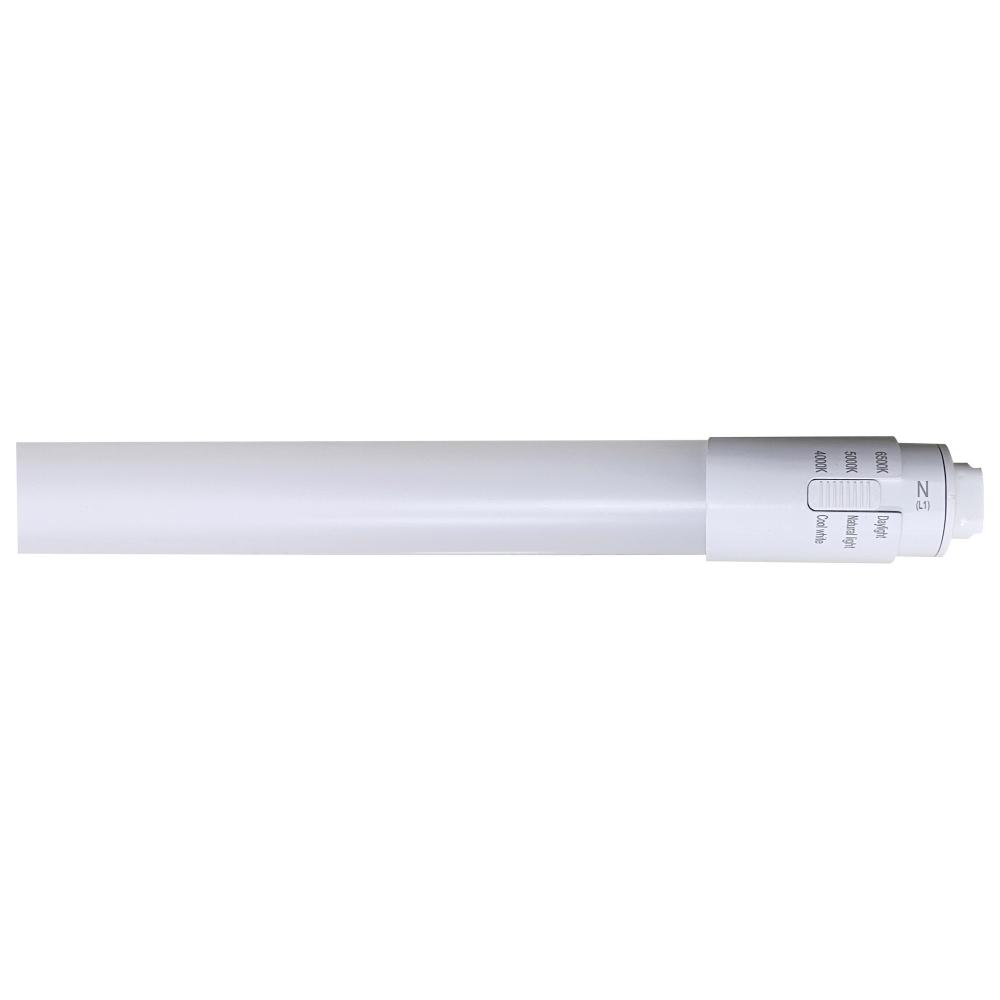

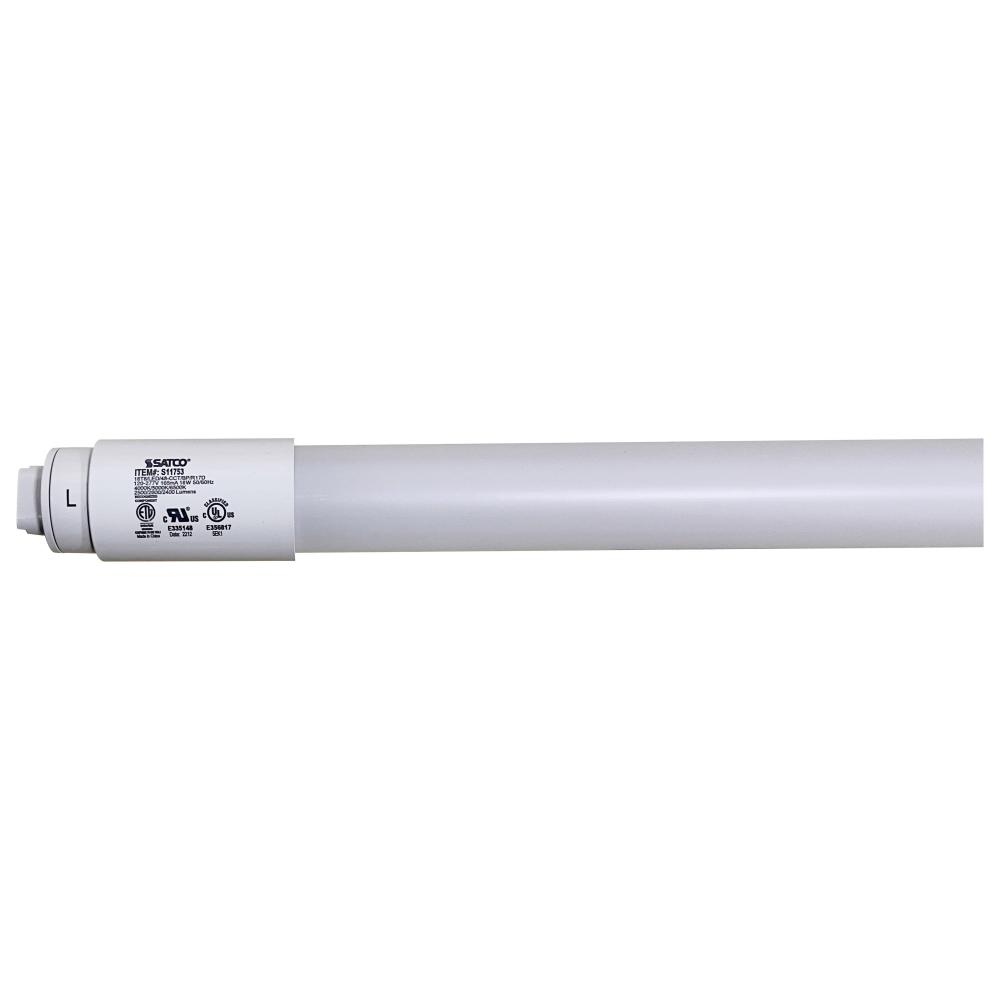

18 Watt T8 LED; Recessed Double Contact HO/VHO Base; CCT Selectable; Type B; Ballast Bypass; PET
Call For Price
993 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview
18 Watt T8 LED; Recessed Double Contact HO/VHO Base; CCT Selectable; Type B; Ballast Bypass; PET Shatterproof Coated; White Finish; 48 Inches; 120-277 Volt
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
Country of Origin- China
Technical Details
Details
Category:
Lamps
Subcategory:
LED Lamps
Wattage:
18w
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
46
Lumens:
2500L/2600L/2400L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.88
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.91
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
180
Bulb ANSI Base:
R17d
Bulb Base:
Recessed Double Contact HO/VHO
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0278
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White to Daylight
Country Of Origin:
China
CRI:
83
DLC Approved:
No
Efficacy:
138.39/144.44/133.33 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Direct replacement for fluorescent T8 or T12 lamps
Feature 2:
Ballast bypass - UL Type B installation
Feature 3:
NSF certified - P.E.T. coated, shatter resistant glass tube
Feature 4:
Compatible with S8002 Emergency Driver
Feature 5:
5-Year warranty
Feature 6:
CCT Selectable
Feature 7:
Rated for 50,000 hours
Flourescent Equivalent:
63W
Housing Color:
White
Incandescent Equivalent:
90W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Material:
Glass / Plastic
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED T8 lamps with Fa8 or R17d bases are some of our most versatile lamps. Featuring ColorQuick selectable color technology, these lamps allow for easy selection of 4000K/5000K/6500K color temperatures at installation. The P.E.T. coated lam
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
18T8/LED/48-CCT/BP/R17D
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%
Wattage Selectable:
No
Watts:
18W
