Part Number: 40JVAPC
/
Vendor ID Number: 4799
/
Custom:

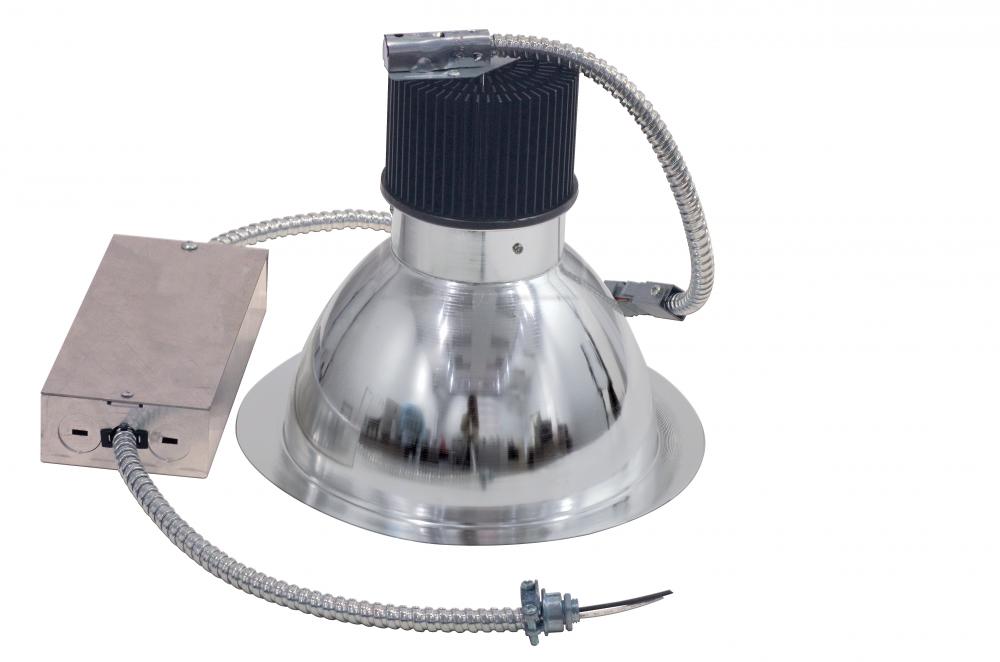

20 watt Commercial LED Downlight Retrofit; 8 inch; 3000K; 120-277 volt
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 8.88"
Width: 9.34"
Finish
Silver / White
Product Overview
20 watt Commercial LED Downlight Retrofit; 8 inch; 3000K; 120-277 volt
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Silver /vendors/vendorImages silver.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Silver / White
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White
Diameter:
9.34
Dimmable:
Yes-Dimmable
Each Height:
9.65
Each Length:
10.9
Each Width:
10.9
Lumens:
1500L
Tariff Code:
8539.50.0091
Warranty:
5 Year Limited - Fixtures
Amps:
0.167-0.072A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
40
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
Each Cube:
0.6635
Each Quantity:
1
Efficacy:
75.00 LPW
FCC Compliant:
Yes
Finish Family:
Silver
Fixture shape:
Round
Flr Equiv:
2 x 18W CFL
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Mounting Procedure:
Ceiling
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.99
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cULus - Classified;cULus - Certified
SDS class:
LED_Fixture
Short Description:
20WLED/CDL/8/30K/120-277
Temperature (CCT):
3000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Trim Color:
Silver
Wattage Selectable:
No
