Part Number: 40J94QL
/
Vendor ID Number: 4799
/
Custom:
24 Watt; 8 Foot; T8 LED; Single pin base; 5000K; 50000 Average rated hours; 3500 Lumens; Type B;
Call For Price
460 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview
24 Watt; 8 Foot; T8 LED; Single pin base; 5000K; 50000 Average rated hours; 3500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
Country of Origin- China
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
94
Harmonized Codes:
8539.52.0051
Length:
94
Lumens:
3500L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.88
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.88
Additional Info:
Suitable for Emergency Lighting only with Satco EM Driver #S8002
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
Fa8
Bulb Base:
Single Pin
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0544
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
82
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLD2OH5KIHQF
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
145.83 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:

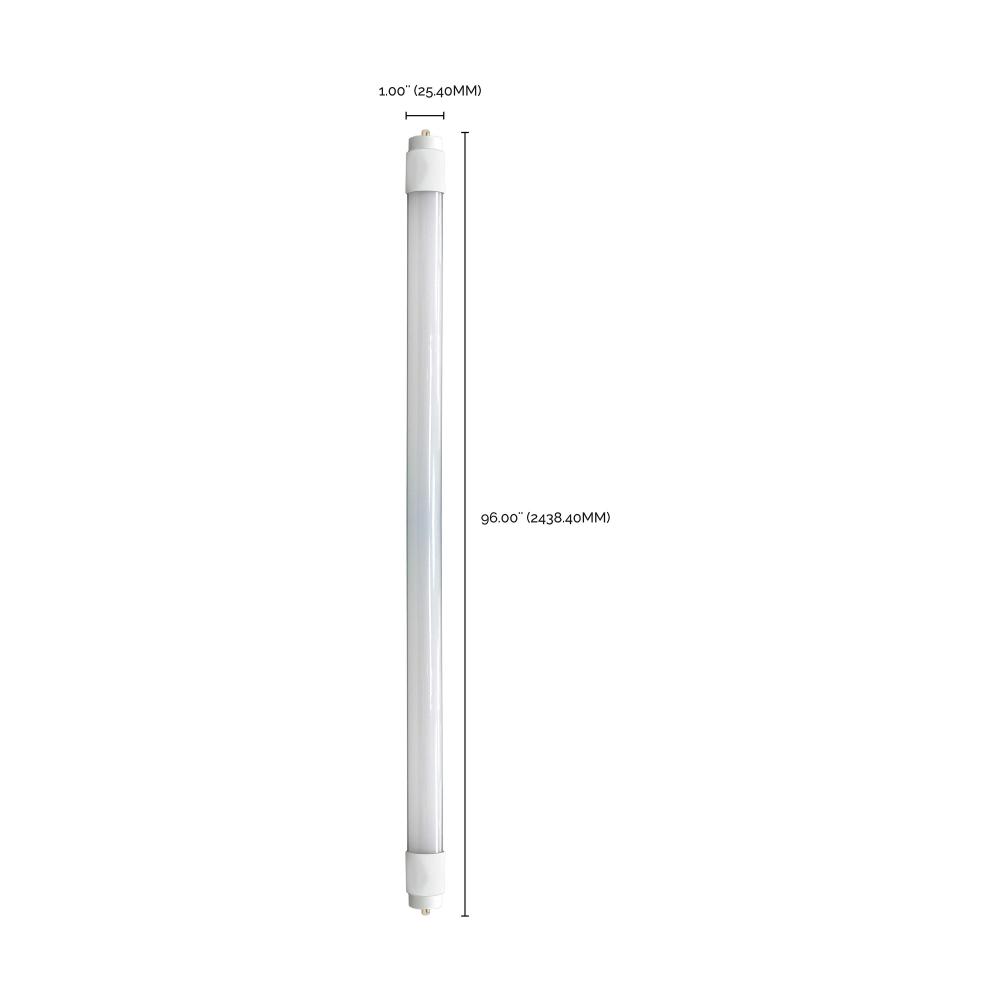

MOL: 94.00 inches, MOD: 1.00 inch
Feature 2:
Superior 82 CRI light quality, 3500 lumens, 5000K CCT with a 210 beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp rated, for indoor use only
Feature 5:
24 watt LED replaces 59 watt fluorescent
Feature 6:
White finished linear glass lamp
Feature 7:
DLC Certified and qualifies for rebates where available
Feature 8:
5 year limited warranty
Flourescent Equivalent:
59W
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens Finish:
White
Location Rating:
Damp
Long Description:

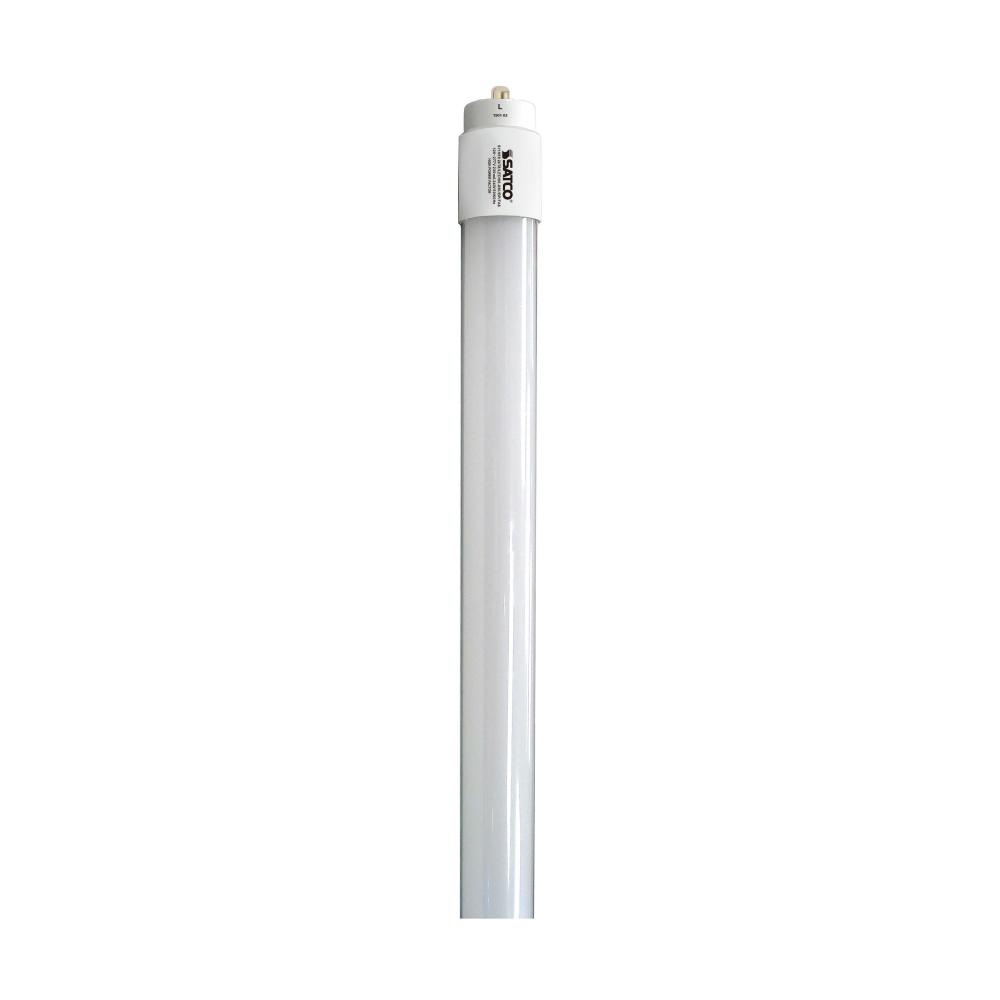

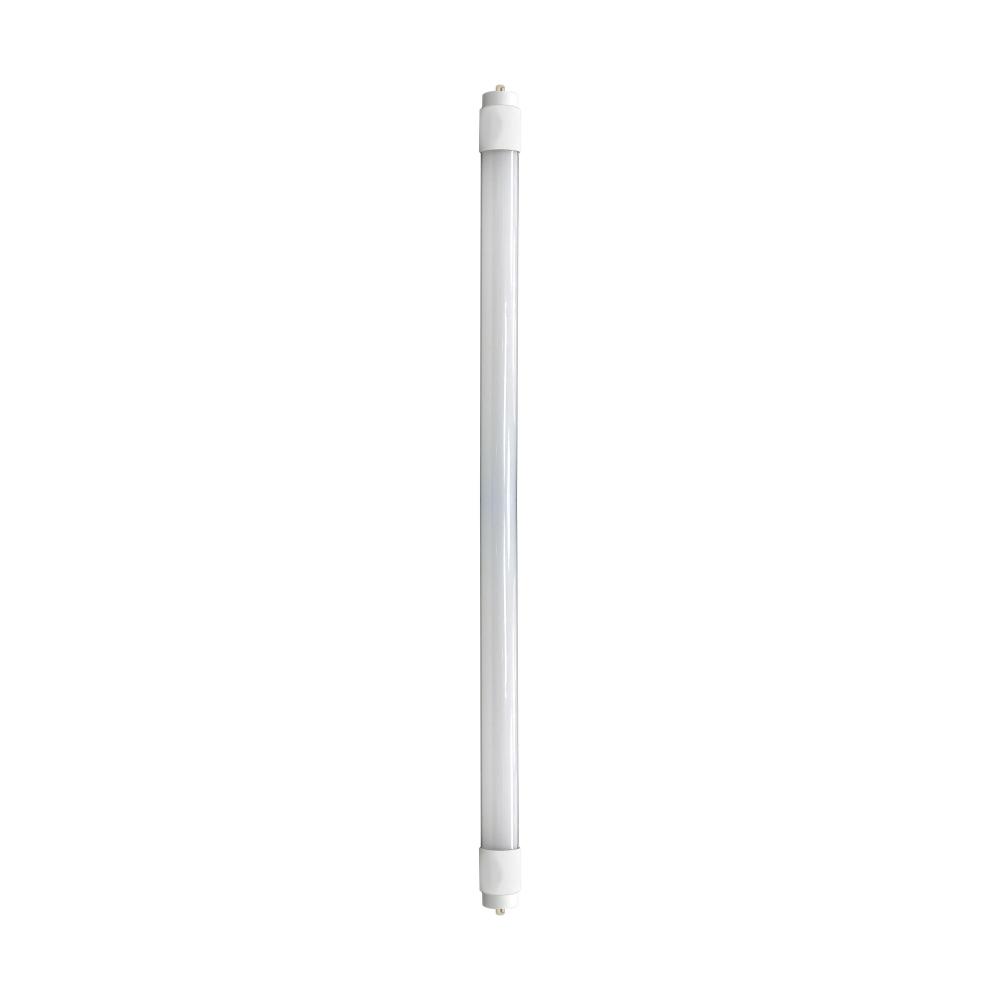

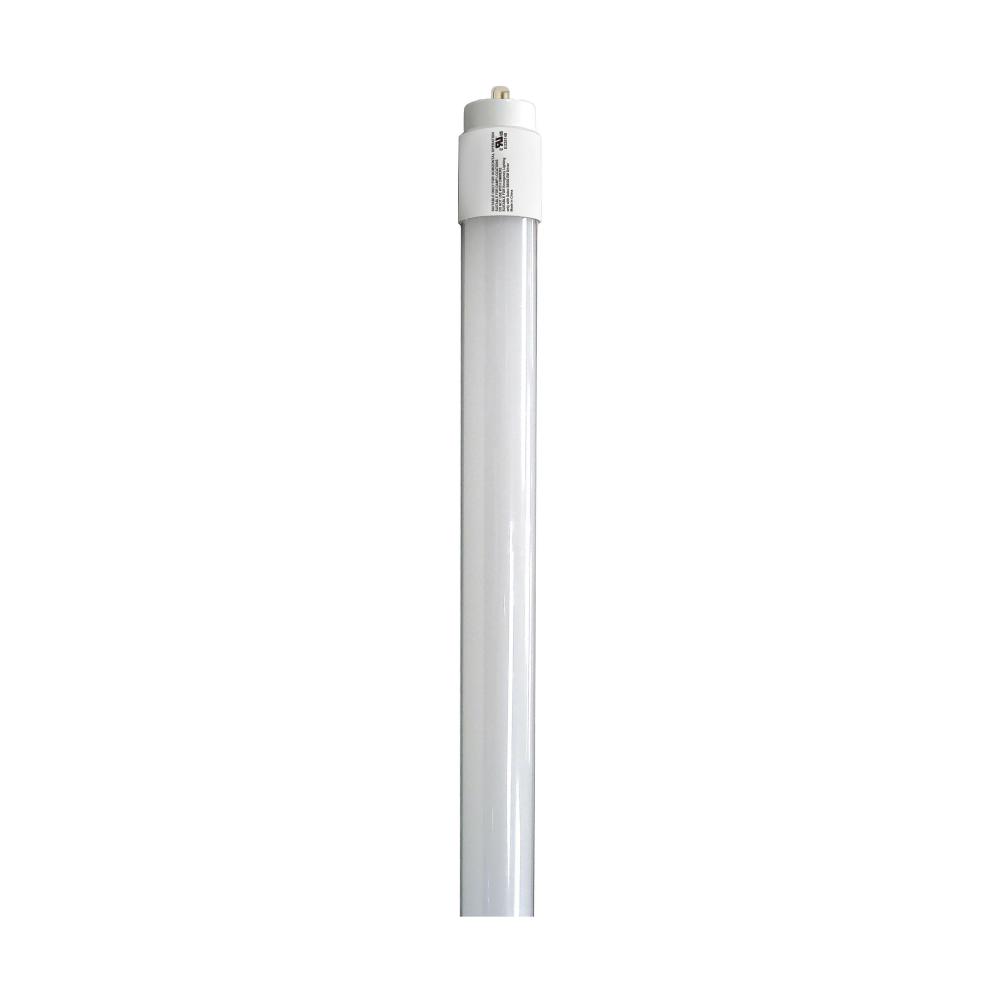

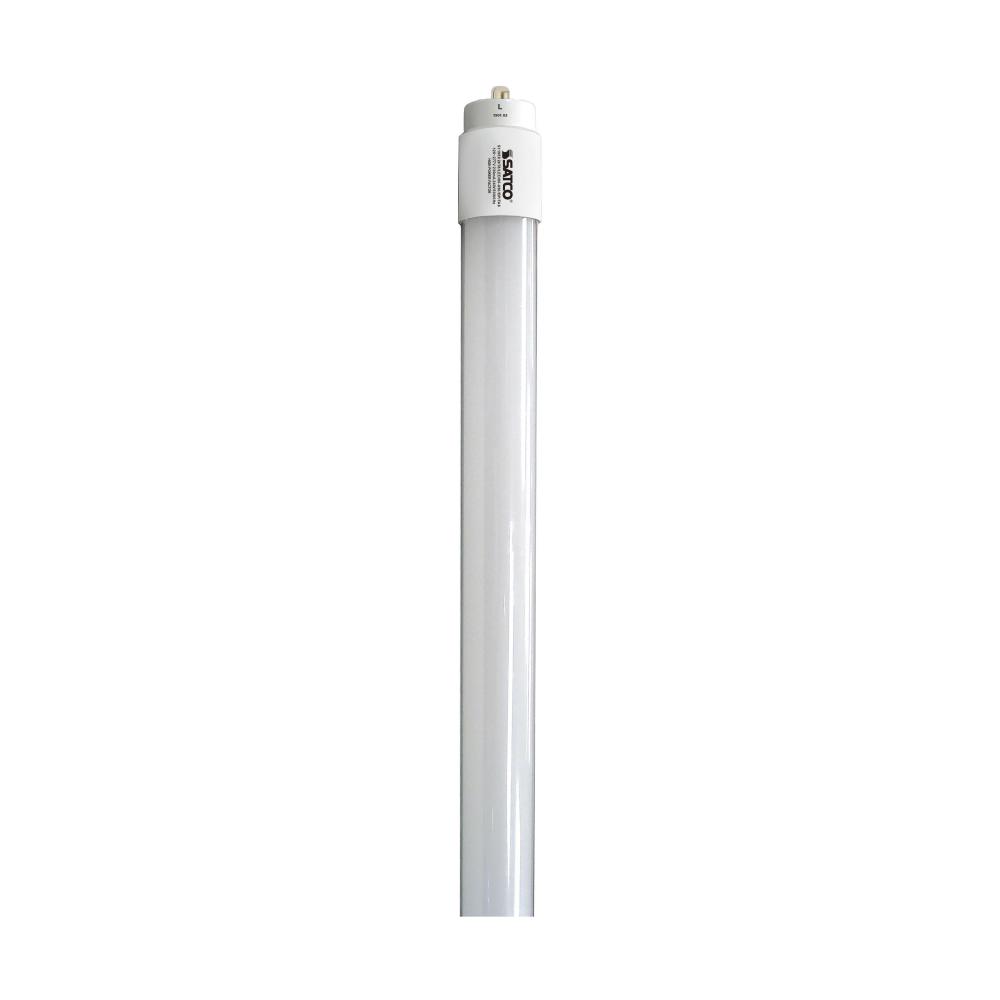

SATCO|NUVO's S11959 24 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof prot
Material:
Glass
Nominal Length:
96
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 24 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection.
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
24T8/LED/96-850/BP/FA8
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
24W
