Part Number: 40J94NR
/
Vendor ID Number: 4799
/
Custom:
9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1740 Lumens; Type A;
Call For Price
122 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview

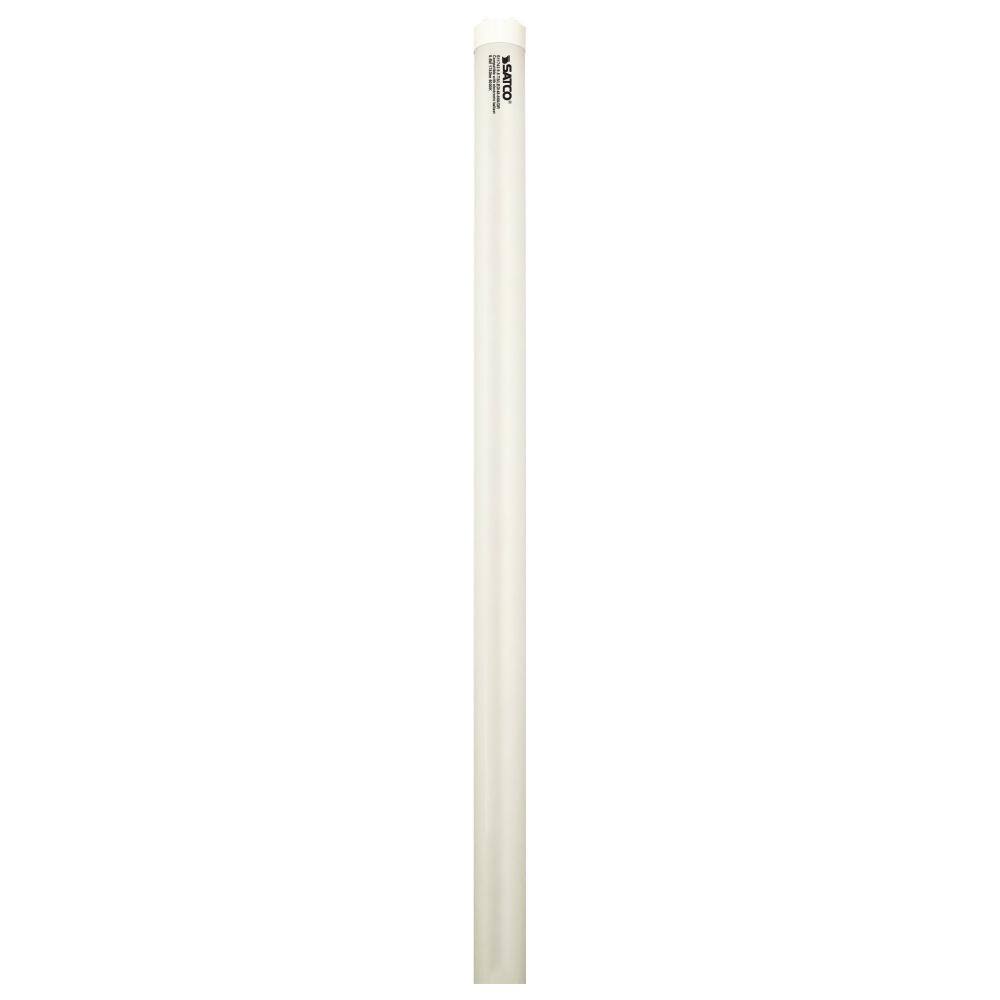

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
Country of Origin- China
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
48
Lumens:
1740L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.51
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.42
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required.May not be compatible with every ballast. Refer to the ballast compatibility chart
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Gloss
Burning Position:
Universal
Carton Cubic Feet:
0.0336
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
82
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PL2JWH754LKM
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
183.16 LPW
FCC Compliant:
Yes
Feature 1:
Up to 183 lumens per watt (LPW)
Feature 2:
All glass tubes - no aging, yellowing, or bending
Feature 3:
Compatible with most instant start, rapid start T8 electronic ballasts
Feature 4:
Damp location rated
Feature 5:
DLC 5.1 certified
Feature 6:
Integrated thermal fuse at pins
Feature 7:
Operating Temperature: -20C (-4F) to a maximum of 45C (113F)
Feature 8:
Long life - Rated for 50,000 hours
Flourescent Equivalent:
32W/30W/28W/25W
Housing Color:
White
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO|NUVO's S11743 9.5-watt, 5000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of natural light. Commercial, health care, ho
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 9.5-watt, 5000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of natural light. Commercial, health care, hospitali
SDS class:
LED_Lamp
Short Description:
9.5/T8/LED/48-850/DR
Specification Notes:
Surge Protection
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
9.5W
