Item Sales Info

Part Number: 6YJVV / Vendor ID Number: 776 / Custom:

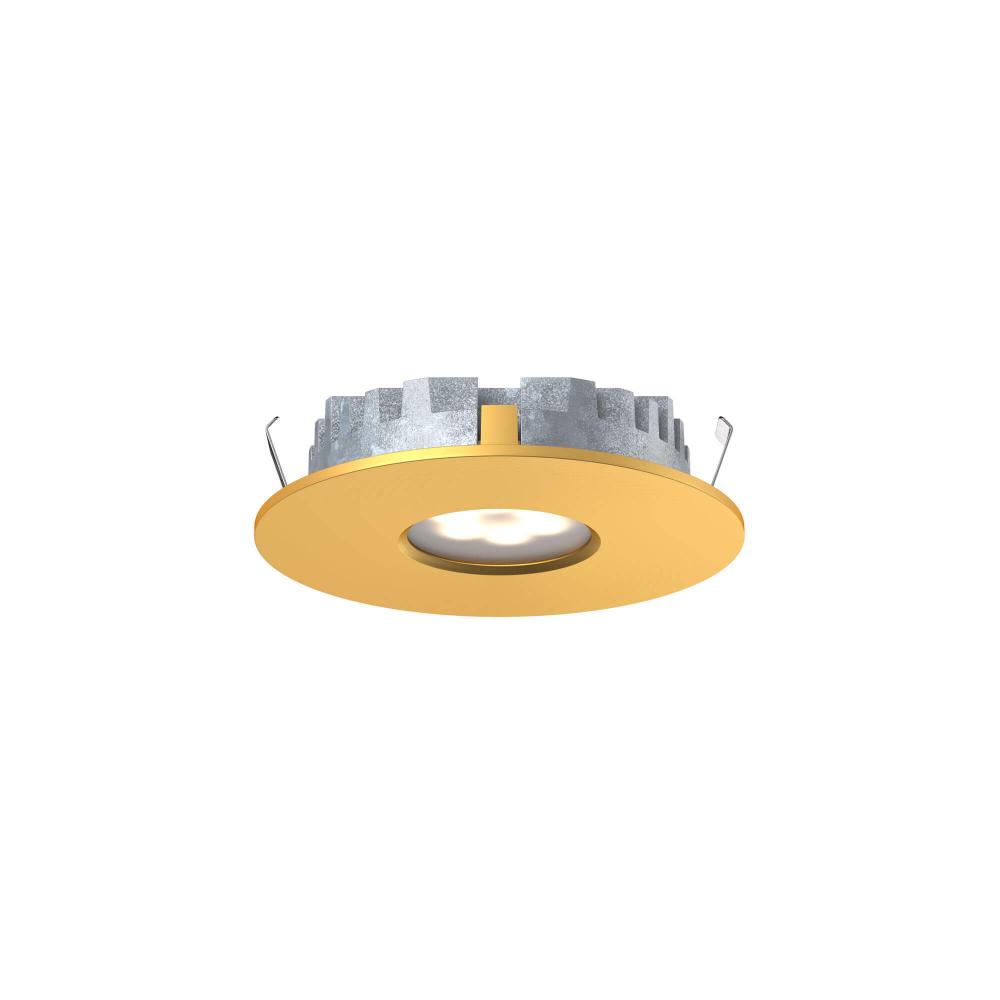

12V LED recessed superpuck, 5CCT

Pack Of: 1

Call for Availability

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

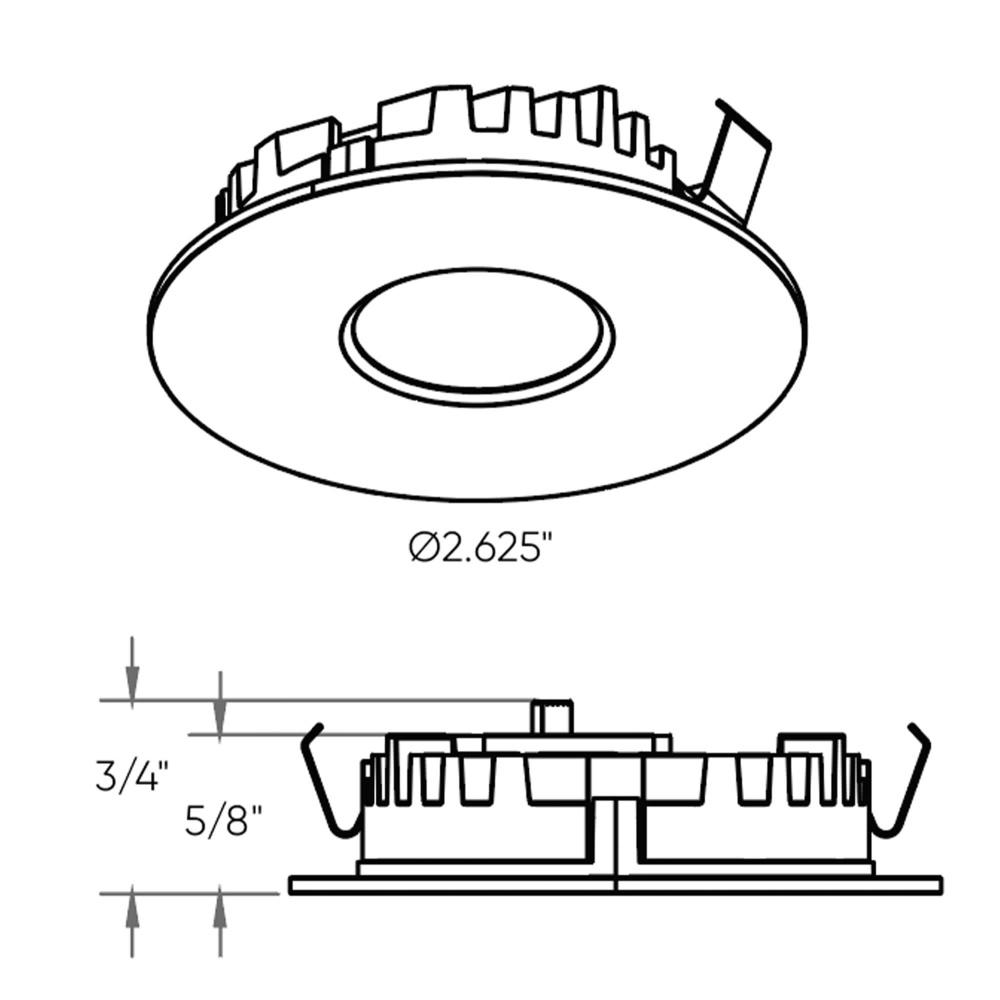

Dimensions

Height: 0.79"

Width: 2.64"

Length: 2.64"

Product Overview

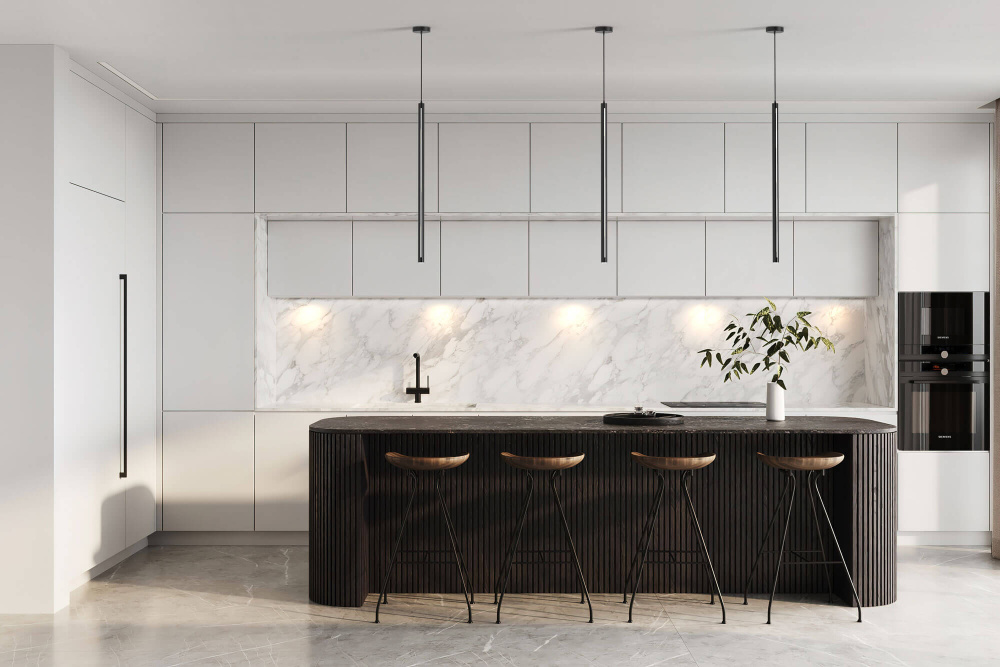

Enjoy low-energy white light in a variety of attractive finishes. These LED pucks are well suited to accent and task lighting under cabinets and in other areas.

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Finish:

Additional Information

12V DC LED driver required

12″ input lead with quick connector

24″ interconnection harness included

Smooth 360 degree wide spread

Switch-selectable CCT: 2700K/ 3000 K/ 3500 K/ 4000 K/ 5000 K

Info & Guides

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Technical Details

Details

Category:

Undercabinet

Subcategory:

Puck Lights

Finish:

Gold /vendors/vendorImages gold.jpg

Option:

Dry Rated

Category:

Undercabinet

Subcategory:

Puck

Finish:

Gold

Family:

Super Puck

Voltage:

12 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Harmonized Codes:

9405.40.90.00

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

3.35

Ship Carton Length:

Ship Carton Width:

1.38

Ship Weight:

0.37

Warranty:

5 Years Limited

Weight:

0.17

Air-Tight (ASTM E283--4):

Beam Angle:

97.1°

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

150

Dimmer Type:

Triac

Energy Star:

IC Certification:

Yes

Indoor:

Yes

Lens Material:

Glass

Location Rating:

Dry Rated

Max Wattage:

3 W

Maximum Working Temperature:

50°C

Minimum Working Temperature:

-20°C

Safety Rating:

ETL Approved

Shipping Master Height:

7.87

Shipping Master Length:

15.5

Shipping Master Quantity:

Shipping Master Weight:

Shipping Master Width:

7.25

Wiring:

Hardwired
