Item Sales Info
Part Number: 6YKX3 / Vendor ID Number: 776 / Custom:

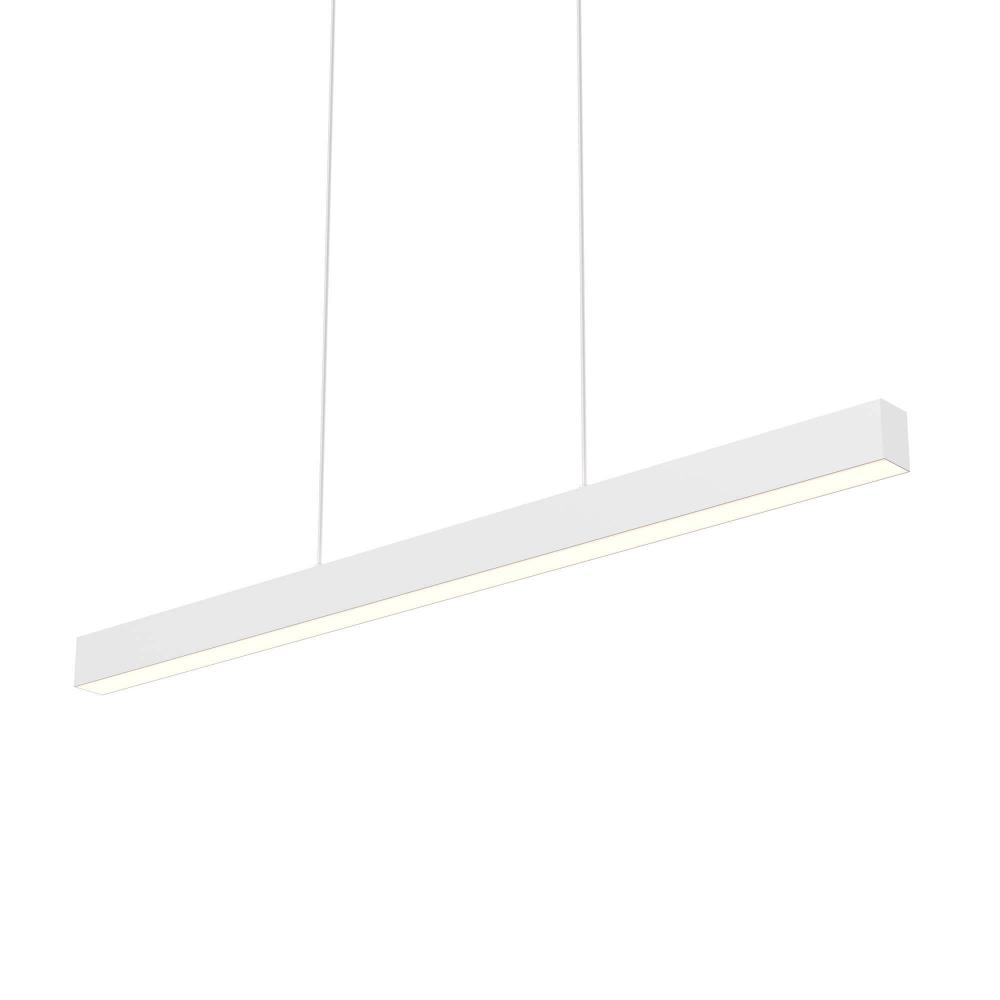

Pendant linear 4' 5CCT 120V, Triac dimming

Pendant linear 4' 5CCT 120V, Triac dimming

281
25
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

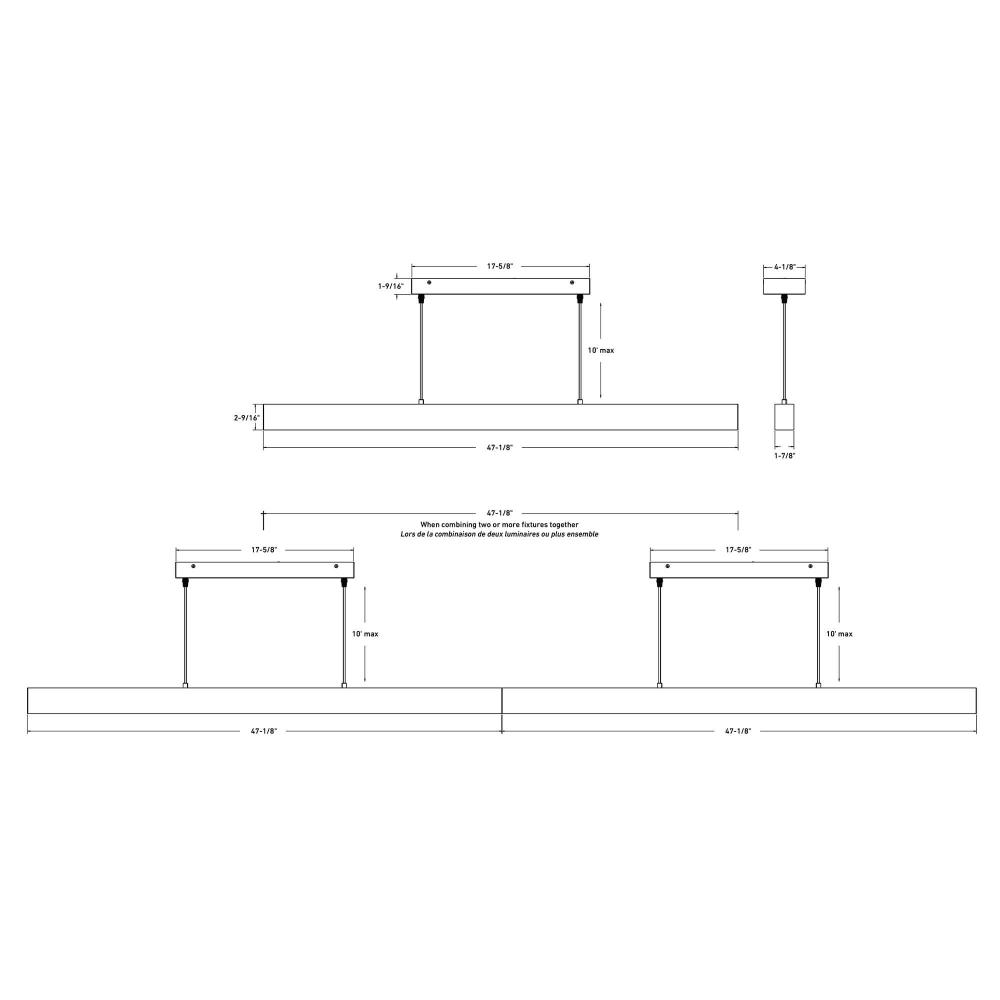

Dimensions
Height: 2.50"
Width: 1.88"
Length: 47.13"
Product Overview
The Boulevard series, a linear modular light fixture perfect for general office, home, and shop illumination. Can be interconnected to produce striking visual effects.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Finish:
Additional Information
Dimming ranges from 10% to 100%
Multiple fixtures can be connected together
Switch-selectable CCT: 2700 K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
Unique 20% up/ 80% down light output
Info & Guides
Click Here to View Instruction Sheet
Click Here to View Catalog Page
Click Here to View Spec Sheet
Technical Details
Details
Category:
Pendants
Subcategory:
Linear Pendants
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Dry Rated
Category:
Ceiling
Subcategory:
Pendant
Finish:
White
Family:
Boulevard Pendant
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Harmonized Codes:
9405.11.0091
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum Extrusion
Ship Carton Height:
4.5
Ship Carton Length:
48.75
Ship Carton Width:
5.5
Ship Weight:
3
Warranty:
5 Years Limited
Beam Angle:
106°
Bulb CRI:
90+
Cord Maximum Length:
120
Country of Origin:
China
Delivered Lumens:
2805
Dimmer Type:
Triac
Energy Star:
Yes
Indoor:
Yes
IP Rating:
IP20
JA8:
Yes
Lens Material:
Frosted PC
Location Rating:
Dry Rated
Max Wattage:
40 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Safety Rating:
ETL Approved
Shipping Master Height:
10
Shipping Master Length:
49.5
Shipping Master Quantity:
4
Shipping Master Weight:
17
Shipping Master Width:
11.5
Title 24:
Yes
Wiring:
Hardwired
